Cranks and bottom bracket - what do I buy

the schwartz

the schwartz

Well-Known Member
I need to replace my cranks. (stripped pedal threads)
I don't need to, but maybe should, replace my bottom bracket (one bearing is a little gritty)

I guess the parts are a bit older and not finding them easily by searching. What should I buy?

It's for my old hardtail, family bike. I'm not concerned about weight, just trying to keep it in good working condition on a budget.

SM-BB70 bottom bracket
SLX cranks, fc-m675

So it's hollowtech ii
175mm
1*10

Any suggestions would be appreciated, or if you have stuff in your parts bin I'll help you declutter...


Attachments

  • PXL_20240509_133607880.jpg
    91.3 KB · Views: 36
  • PXL_20240509_133619138.jpg
    132.6 KB · Views: 27
  • PXL_20240509_133630215.jpg
    51.5 KB · Views: 28
Last edited:
the schwartz said:
I need to replace my cranks.
I didn't have to, but maybe should, replace my bottom bracket.

I guess the parts are a bit older and not finding them easily by searching. What should I buy?

It's for my old hardtail, family bike. I'm not concerned about weight, just trying to keep it in good working condition on a budget.

SM-BB70 bottom bracket
SLX cranks, fc-m675

So it's hollowtech ii
175mm
1*10

Any suggestions would be appreciated, or if you have stuff in your parts bin I'll help you declutter.
Click to expand...
If you replace the cranks you need to know the specs of the new cranks before selecting the BB. If you keep the same standard (24mm spindle) any BSA threaded, 24mm 73mm width BB will do. Many use the current Shimano XT or XTR BB.

Other options are 30mm Cinch or DUB (SRAM)

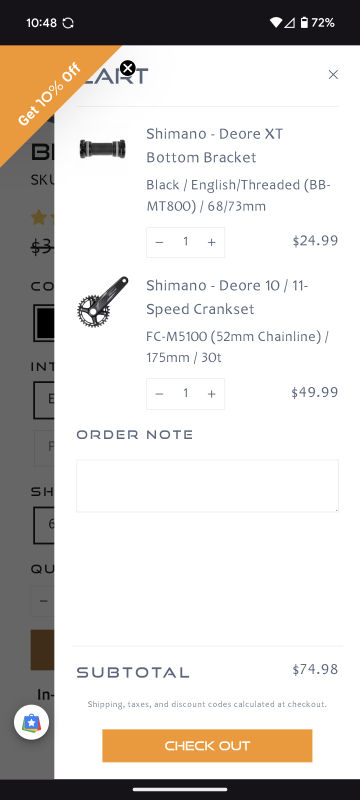

Would these two things work, on my bike, and with each other?

Apologies I'm a complete noob this parts of the bicycle is virgin territory to me


www.ignitecomponents.com

Catalyst Cranks | Ignite Components

*Demand has been absolutely incredible, which I am very appreciative of. All new orders placed on non-stock items are looking at about an 8 week ETA Catalyst Cranks are strong, light, beautiful, and made right here in-house.Using the finest cold forged aluminum and the latest cutting-edge...
www.ignitecomponents.com www.ignitecomponents.com

the schwartz said:
Would these two things work, on my bike, and with each other?

Apologies I'm a complete noob this parts of the bicycle is virgin territory to me

View attachment 238093
Click to expand...
Should work without any issue. Although if a 170mm length crankset is available you may want to go with that.

If you don't have the bottom bracket tool, may as well order now. Your current bottom bracket probably has the larger style and the newer one is the smaller style but usually ships with a plastic adapter.
